ORG Manual Softener Valve
Simple structure and reliable sealing It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, Brine & Slow Rinse, Brine Refill and Fast Rinse. No water pass the valve of single tank type in regeneration. Various methods for installation The valve can be top-mounted and side-mounted (Should be used with the side-mounted connector). Handle alternatives: Metal and plastic
Model No | Inlet/Outlet Size | Capacity | Installation Position | Special Features | Strainer & Riser Pipe | Base Size |

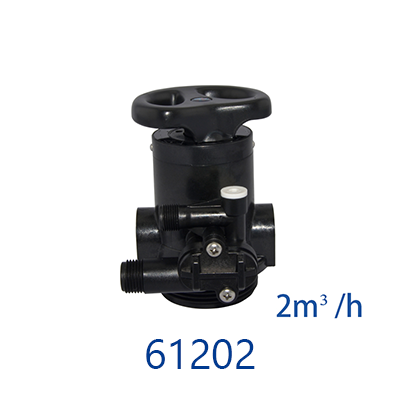

61202 | 3/4" (20NB) | 2000 Lph | Top/Side Mount | - | 3/4" ,1.05" | 2.5"-8NPSM |

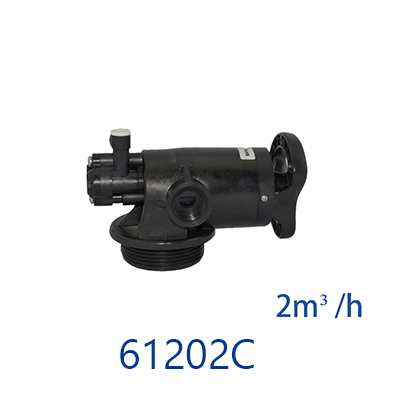

61202C | 3/4" (20NB) | 2000 Lph | Top Mount, Front Face | - | 3/4" ,1.05" | 2.5"-8NPSM |

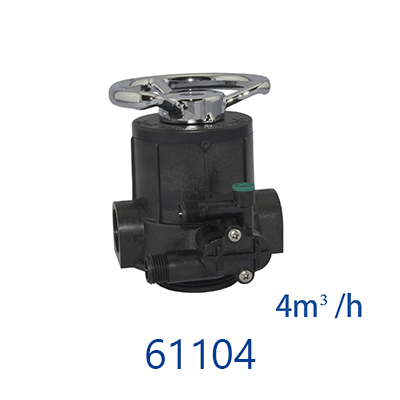

61104 | 1" (25NB) | 4000 Lph | Top/Side Mount | - | 3/4" ,1.05" | 2.5"-8NPSM |
61204C | 1" (25NB) | 4000 Lph | Top/Side Mount | - | 3/4" ,1.05" | 2.5"-8NPSM |

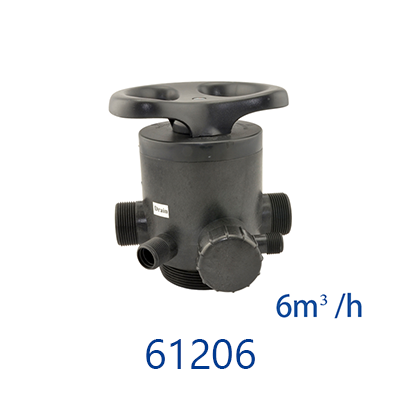

61206 | 1.5" (40NB) | 6000 Lph | Top/Side Mount | - | 3/4" ,1.05" | 2.5"-8NPSM |
61210N | 2"(50NB) | 10000 Lph | Top/Side Mount | With Engineering plastic disk | 2",1.5"D-GB | 4"- 8UN |

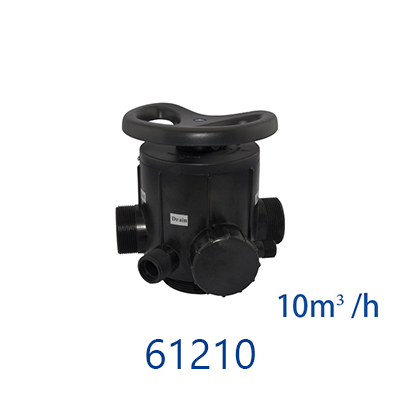

61210 | 2"(50NB) | 10000 Lph | Top/Side Mount | - | 2",1.5"D-GB | 4"- 8UN |

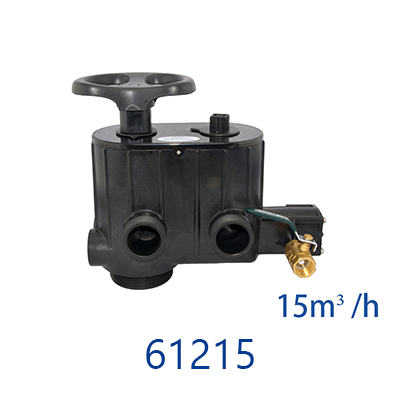

61215 | 2"(50NB) | 15000 Lph | Side Mount | - | ||

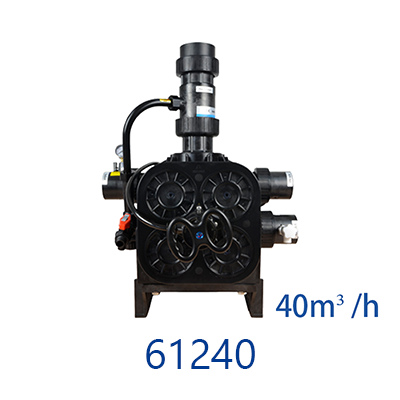

61240 | DN 65 | 40000 Lph | Side Mount | - | ||
Additional Information:
Manual Softener Valve | 61202 , 61202C , 61104 , 61204C , 61206 , 61210 , 61210N |
