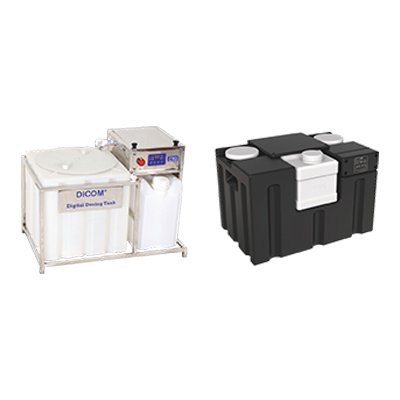

ORG Digital Dosing Tank
₹25,999.00
/pcs
We at ORG researched and developed a unique product which is called DDT (Digital Dosing Tank). It plays a big role in dosing chemical industries. Our Automatic Digital Dosing Tank is a very simple device where users can digitally set the water chemical mixing ratio in a very easy way. In this device, two tanks are provided. One is a dilution tank another is a chemical tank. Both tanks are equipped with level sensors. The DDT automatically combines water & the concentrated dosing chemical as per a defined mixing ratio into the dilution tank sufficient for 24 hours and is assured to refill the system every 24 hours 365 days of the year.
Specifications :-
Dilution Tank Size | 50 L |
Chemical Tank Size | 10 L |
Chemical Digital Setting range | 5 to 500 ml in fixed water volume 25 L |
Operating Voltage | 230 AC - 50 Hz - 5 Amp |
Skid Material | SS 304 |
Size in mm | 635 X 406 X 495 |
Features :
- Prevents damage of the dosing pump, dry run. (Automatically trips off in the event of no chemical)
- Ensures precise dilution ratio (The system incorporates a highly accurate chemical feeding pump.)
- It prevents expensive chemical wastage (Caused due to improper regular handling.)
- It saves expensive manpower. (It is fully automatic once the chemical is empty, alarms are activated & mains are shut.)
- It eliminates human error in mixing.
Additional Information:
Not Available |
