Automatic Water Level Controller with Ceramic Ball Valve

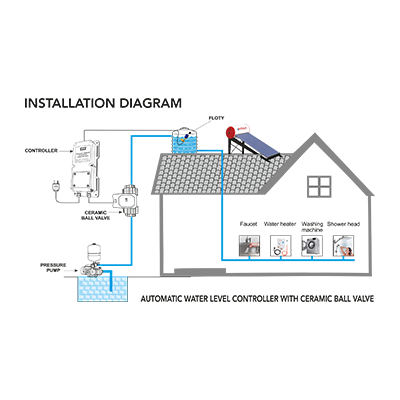

The ORG Water Level Controller with Ceramic Ball Valve is a problem-solving product designed for water storage tanks with installed pressure pumps at Bungalows and Apartments. This product consists of three parts: 1) Motorised Ceramic Ball Valve 2) Water Level Controller for Motorised Ball Valve 3) Floaty Switch
The Motorised ceramic ball valve can be installed on the
water input pipe of the storage tank. Operating on 24V DC power, it is rain
protected with an IP65 design. Its core parts, including the ceramic ball and
seal are made by ceramic and due to its ceramic moving mechanical parts it
ensure a long maintenance free life.
The Water level Controller takes signal input from the
floaty switch and turning the ball valve ON and OFF. It can be installed on the
wall of the water storage tank or easily mounted on a vertical pipe using a
belt. Operating on 230V AC power, it supplies 24V DC power to the ball valve.
The Water Level Controllers made of IP65 ABS plastic to protect it from rain.
The floaty is simply fixed in the storage water tank, with wire connections (NO, C, NC) to the water level controller.
Available sizes : 1” , 1.5” , 2”
Additional Information:
Automatic Water Level Controller | 1" , 1.5" , 2" |
